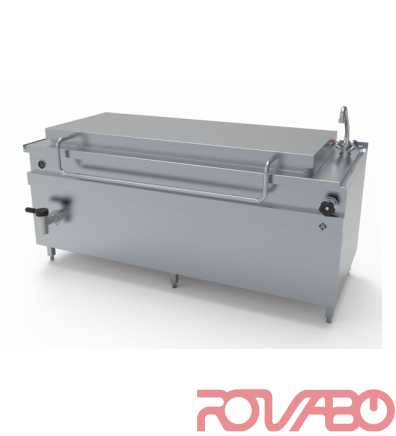

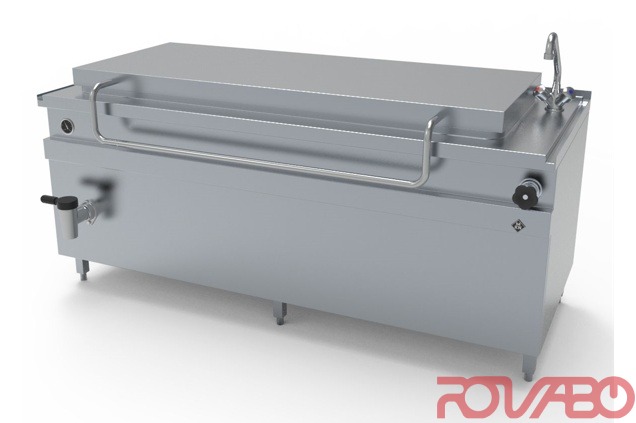

Steam boiling kettle, 500 l, 52 min heatup
| Model | MKN_10029365 |
| Power Type | Electrical |
| Power | 63 kW |
| Capacity | 545/490 l |
| Dimensions | 2000x850x850 mm |
| Weight | 305 kg |
| Producer | MKN Maschinenfabrik Kurt Neubauer GmbH & Co. KG |
Inner kettle 1690x665 mm, 465 mm deep, for 12xGN 1/1 – 200 mm deep made completely of extremely corrosion-resistant chrome nickel steel (1.4404) (AISI 316). Regulation via manual steam valve (Type of protection: IPX6). For steam generator installation on site. 3 cooking programmes as standard (light simmering, medium boiling and strong boiling). Double-walled hinged lid and mixer tap as standard. Heat up time 52 min (according to DIN 18855). Fittings: steam valve DN 25, air valve, pressure gauge. Emptying via safety drain cock at the front. Nominal thermal load: 102 kg/h, steam pressure connection 0.5-0.8 bar. Heat emission sensitive: 2.2 kW, latent: 12.6 kW. Accessories: extra large drain cock 2" made of chrome nickel steel, 1 drain filter, 1 Mixer tap with outlet R¾" (DN 20). Optional accessories: 1 Cooking insert, 1/1 GN, perforated, 190 mm deep, 1 Measuring rod, appliance foot, 200 mm high, pluggable +/– 15 mm height adjustable (4 feet).
