Thermal equipment

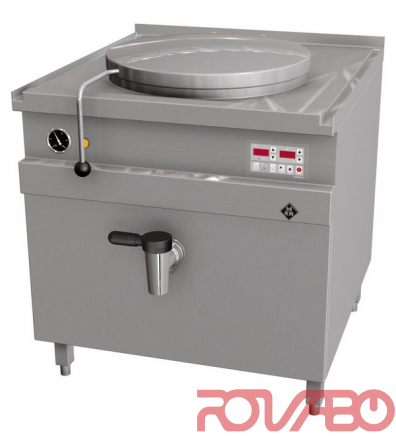

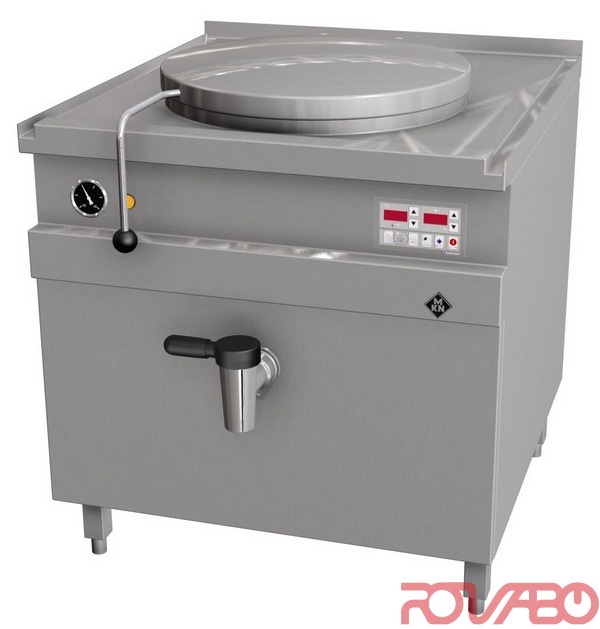

Inner kettle Ø500 mm, 378 mm deep made completely of extremely corrosion-resistant chrome nickel steel (1.4404) (AISI 316). Heat up time 21 min (according to DIN 18855). Double jacketed kettle with separate, integrated and maintenance-free VAPRO steam generator for short heating up times and low energy and water consumption as well as highly efficient. Short heating up times with VAPRO pressure steam system. 3 cooking programmes as standard (light simmering, medium boiling and strong boiling). With EcoControl electronic temperature regulation and membrane keypad. Automatic process water monitoring and feed – is constantly ready for use. Double-walled hinged lid and mixer tap as standard. Emptying via safety drain cook at the front. Equipped as standard with interface for connection to an energy optimization system according to DIN 18875 and potential free contact. Main switch, power switch, thermostat, temperature monitor, control lamps, tubular heating elements, pilot heating elements, contactor, water solenoid valve, water level regulator with electrode, pressure regulator, mains connection, IpX6. Fittings: air valve, safety valve. Heat emission sensitive: 0.56 kW, latent: 3.2 kW. Accessories: extra large drain cock 1½" made of chrome nickel steel, 1 drain filter, 1 Mixer tap with outlet R¾" (DN 20). Optional accessories: 2 Chrome nickel steel cooking inserts, perforation Ø10 mm, 1 pair of lifting hooks, 1 Measuring rod, appliance foot, 200 mm high, pluggable +/– 15 mm height adjustable (4 feet).
