Thermal equipment

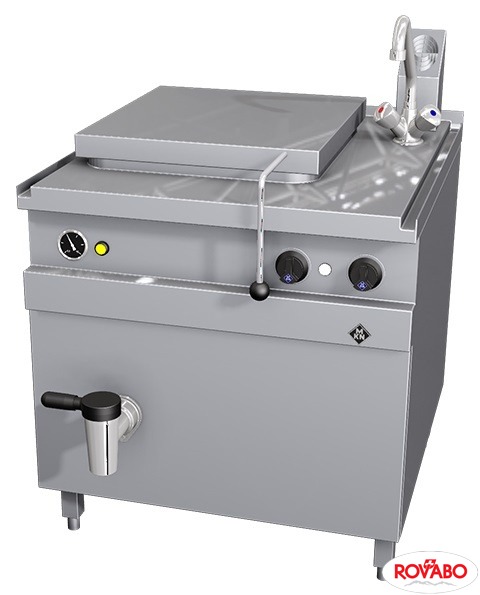

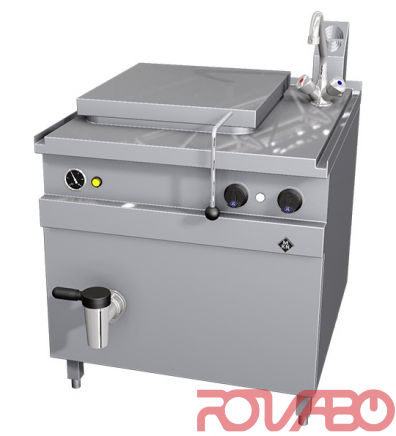

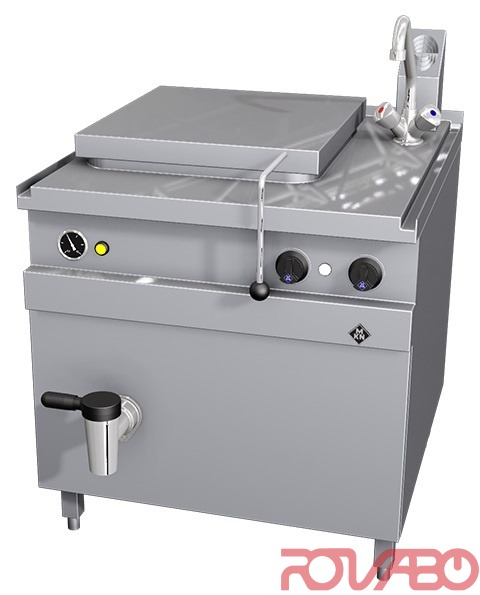

Inner kettle made completely of extremely corrosion-resistant chrome nickel steel (1.4404) (AISI 316). Inner kettle: 500x540 mm, 535 mm deep for 2xGN 1/1 – 200 mm deep. Heat up time 31 min. DN 20 (¾") gas connection required. Main switch, interference button, thermostat, safety temperature thermostat, control lamps, gas regulating valve, water solenoid valve, water level regulator with electrode, pressure regulator, mains connection, IpX5. Fan-forced gas burner, digital automatic firing device with high voltage ignition and flame monitor, air valve and safety valve. Nominal thermal load: natural 20; 25 mbar or liquid gas 30; 37; 50 mbar. Innovative fan-forced gas burner technology for fast heating up times and low energy consumption (efficiency approx. 90 %). Less emission due to an optimal mixture of combustion air with the gas. The appliances are independent of the primary pressure of the gas pipe. 8 cooking programmes and a gentle heat setting control as standard. Thermostatic or EcoControl electronic temperature regulation. Automatic process water monitoring and feed. Emptying via safety drain cock at the front. Double-walled hinged lid and mixer tap as standard. Accessories: extra large drain cock 2" made of chrome nickel steel, 1 drain filter, 1 Mixer tap with outlet R¾" (DN 20). Optional accessories: automatic lifting device for e.g. 6x1/1 GN - 65 mm deep, 1 Cooking insert, 1/1 GN, perforated, 190 mm deep (2 are required), 1 perforated shelf insert, 1 Measuring rod, appliance foot, 200 mm high, pluggable +/– 15 mm height adjustable (4 feet).
