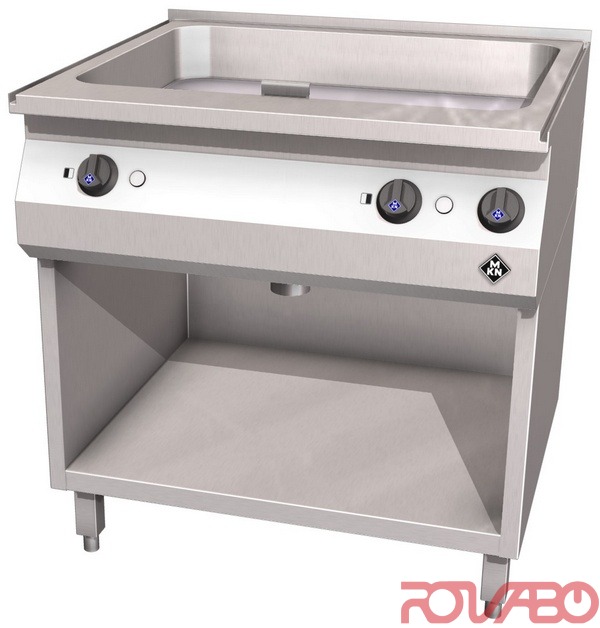

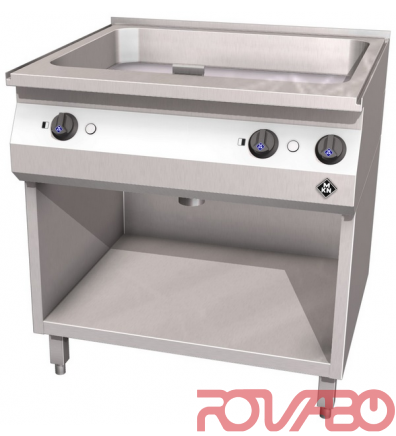

Electric griddle pan 2 SUPRA, 37 lt, 10.8 kW
| Model | MKN_1322509 |
| Power Type | Electrical |
| Power | 10.8 kW |
| Capacity | 37 l |
| Dimensions | 800x700x850 mm |
| Weight | 92 kg |
| Voltage | 400V/3/50Hz |
| Producer | MKN Maschinenfabrik Kurt Neubauer GmbH & Co. KG |
Multifunctional unit for frying, cooking and stewing. Frying surface 705x545, 100 mm deep. Appliance with two separate heating zones with thermostatic temperature regulation. Griddle pan with frying pan made completely of chrome nickel steel 1.4404 (AISI 316). Supra contact heating elements for optimal heat distribution and short heating up times. Greater heating capacity ensures even heat distribution and minimal temperature fluctuation when loading with cold food. A long service life is ensured by low heating element temperature and effective heat insulation. A safety temperature limiter for reliable overheating protection. Griddle plates with fat collecting drawer with splash protection. Main switch, thermostat, control lamp, safety temperature thermostat, SUPRA contact heating elements, mains connection, IPX4. Heat emission sensitive: 4.9 kW, latent: 4.3 W. Equipped as standard with interface for connection to an energy optimization system according to DIN 18875 and potential free contact. Accessories: 1 plug. Optional accessories: appliance foot, 200 mm high, pluggable +/– 15 mm height adjustable (4 feet).
