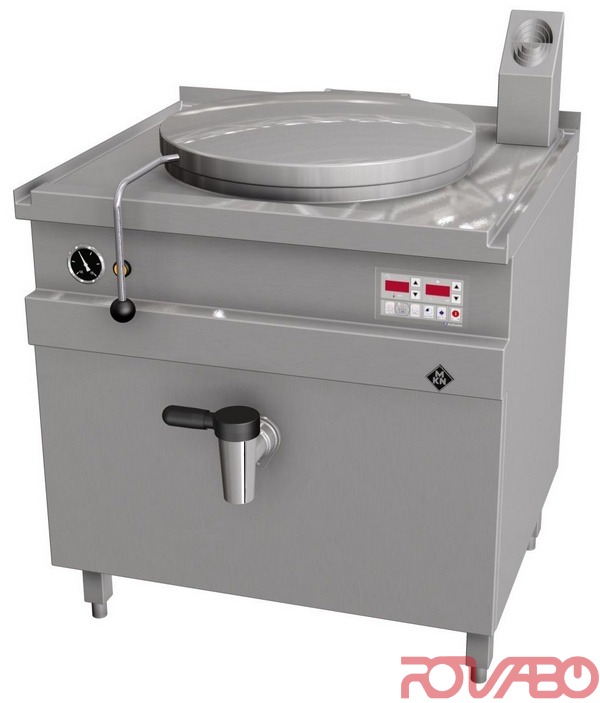

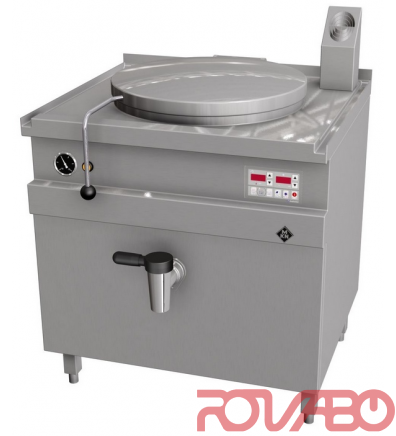

Gas quick boiling kettle 60 L with EcoControl electronic regulation
Model | MKN_10018545 |
Power Type | Gas |
Power | 15 kW |
Capacity | 70/60 l |
Dimensions | 800x700x850 mm |
Weight | 139 kg |
Voltage | 230 V/1/50 Hz |
Producer | MKN Maschinenfabrik Kurt Neubauer GmbH & Co. KG |
Inner kettle Ø500 mm, 378 mm deep made completely of extremely corrosion-resistant chrome nickel steel (1.4404) (AISI 316). Heat up time 22 min. (according to DIN 18855). Less emission due to an optimal mixture of combustion air with the gas. The appliances are independent of the primary pressure of the gas pipe. In the case of fluctuating/low primary pressure the functioning and a stabile heat supply are secured (operating range from 15-30 mbar). 8 cooking programmes and a gentle heat setting control as standard. With EcoControl electronic temperature regulation and membrane keypad. Autom. process water monitoring and feed. Emptying via safety drain cock at the front. With double-walled hinged lid and mixer tap as standard. DN 20 (¾") gas connection required. Main switch, interference button, thermostat, safety temperature thermostat, control lamps, gas regulating valve, water solenoid valve, water level regulator with electrode, pressure regulator, mains connection, IPX5. Fittings: innovative fan-forced gas burner for fast heating up times and low energy consumption (efficiency approx. 90%), digital automatic firing device with high voltage ignition and flame monitor, air valve and safety valve. Natural 20; 25 mbar or liquid gas 30; 37; 50 mbar. Heat emission sensitive: 1.5 kW, latent: 4.5 kW. Accessories: extra large drain cock 1½" made of chrome nickel steel, 1 drain filter, 1 Mixer tap with outlet R¾" (DN 20). Optional accessories: 2 chrome nickel steel cooking inserts, perforation Ø10 mm, 1 pair of lifting hooks, 1 measuring rod, appliance foot, 200 mm high, pluggable +/– 15 mm height adjustable (4 feet).
