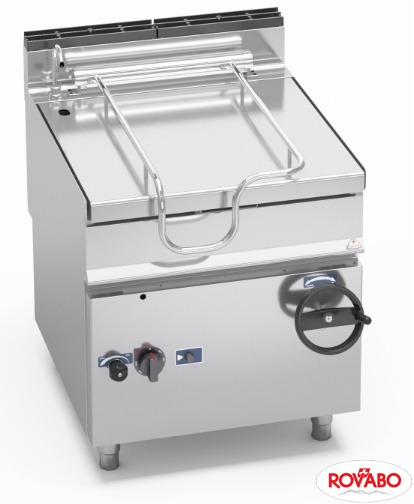

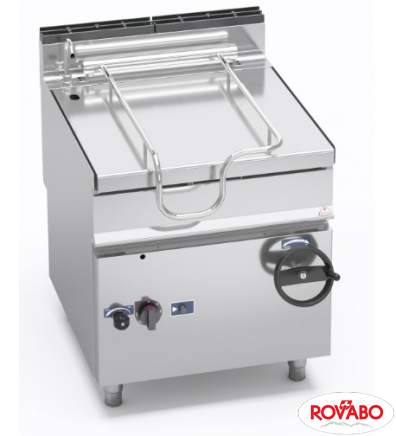

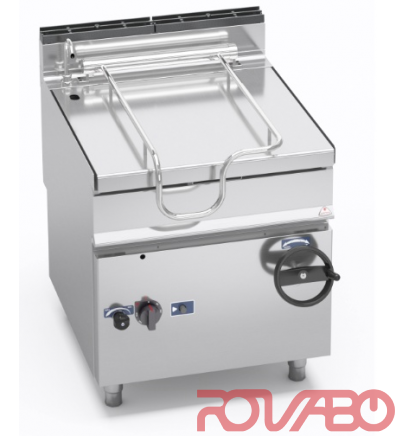

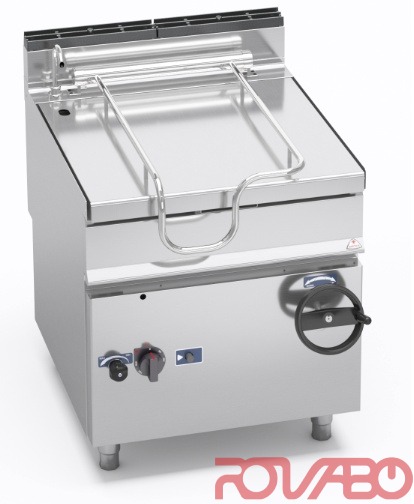

Gas tilting bratt pan, 80 l
Model | G9BR8/I |
Power Type | Gas |
Power | 20+0.0006 kW |
Temperature | 100-300°C |
Capacity | 80 l |
Dimensions | 800x900x900 mm |
Weight | 170 kg |
Internal and external frame completely made of stainless steel, external sides with Scotch Brite finishing. Cover fixed on a self-balanced hinge from AISI 304 stainless steel with a very thick handle from AISI 304 stainless steel. Cooking tank with AISI 304 stainless steel walls with 20/10 thickness, non-stick ceramic micro-sphere finishing and completely rounded angles. 17.196 kcal/h. Radiating steel tank bottom with 10 mm thickness; externally welded. Distributing tap with large capacity neck placed on the top. Handwheel to lift the tank with a folding handle. Even heating at the bottom with stainless steel multi-flame burners, with thermocouple safety valve and protected pilot flame. Piezoelectric ignition with rubber protection. Control with a large precision thermostatic valve with temperature regulation from 100 to 300°C.
