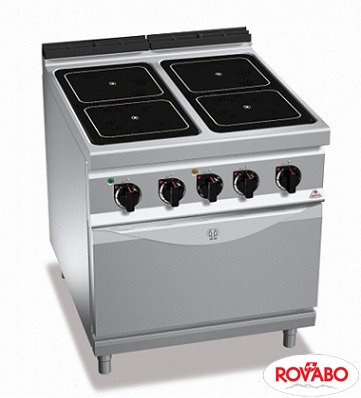

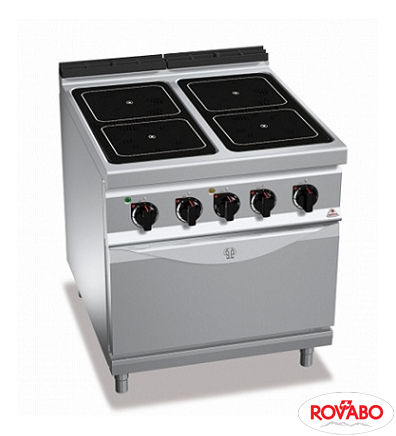

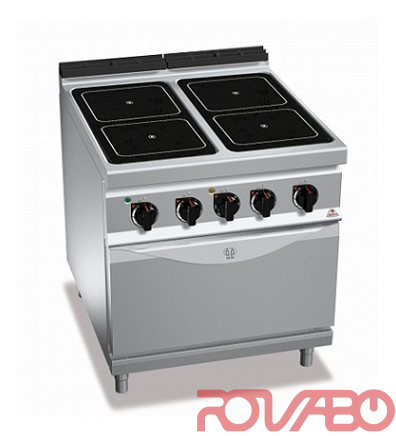

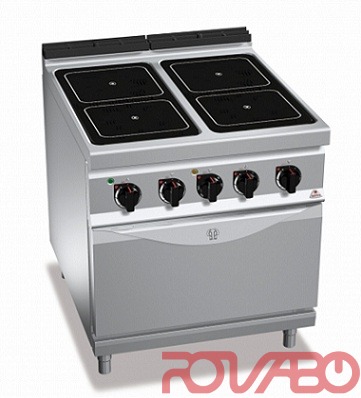

Infrared stove, 4x4 kW ø270 mm + 7.5 kW 4GN2/1
| Model | E9P4P/VTR+FE |
| Power Type | Electrical |
| Power | 23.5 kW |
| Capacity | 4xGN2/1 |
| Dimensions | 800x900x900 mm |
| Weight | 149 kg |
| Voltage | 400 V/3/50 Hz |
Worktop, front and side panels made of AISI 304 stainless steel. Inside made of stainless steel. Pyroceram top with a thickness of 6 mm. Electrical resistances able to reach high temperatures (500° C) to heat the cooking top with irradiation. Heating circuit in square zones 300 x 300 mm and 4 kW of power. The zones are marked with proper serigraphs that allow the proper positioning of the pans.After switching off each zone, a light signals residual heat up to 60° C to safe-guard the operator.Electric oven with Incoloy stainless steel resistances with oversize diameter. Grill with salamander function in the upper side and thermostat for the correct regulation of temperature from 50° to 270° C. Oven chamber from AISI 430 with 4-level supports and internal, pressed and ribbed door from stainless steel. Pilot light and temperature indicator light. High resistance and double-pressed handles from AISI 304 stainless steel of 20/10 thickness.
