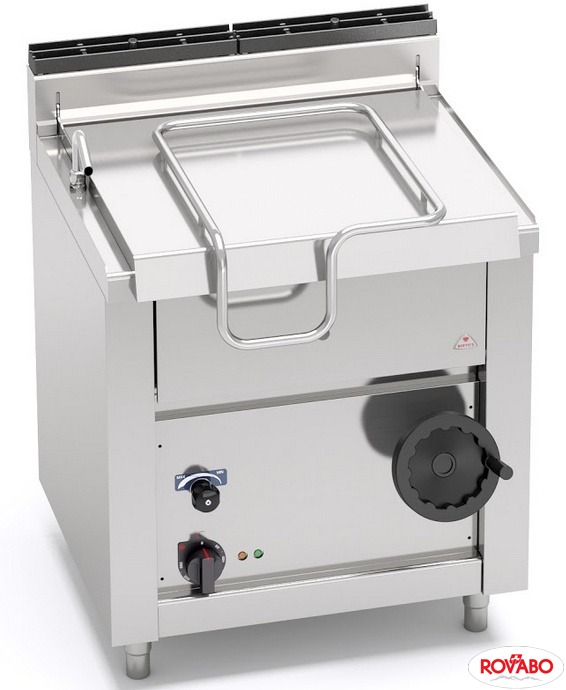

Electric tilting bratt pan, 60 l
| Model | E7BR8/I |
| Power Type | Electrical |
| Power | 9 kW |
| Capacity | 60 l |
| Dimensions | 800x714x900 mm |
| Weight | 112 kg |
| Voltage | 400 V/3/50 Hz |
Cover with a condensation collection system fixed on a self-balanced hinge. Cooking tank with bottom and walls from AISI 304 stainless steel, manual tilt to 80°, with non-stick ceramic micro-sphere finishing and rounded edges. Steel tank bottom of 10 mm thickness, externally welded to provide better thermal conductivity. Uniform heat as a result of the heating elements being in direct contact with the base. Power supply controlled by switch and thermostat (100-300°C). Safety thermostat with manual restart. Tension and operation lights. Adjustable feet.
