Thermal equipment

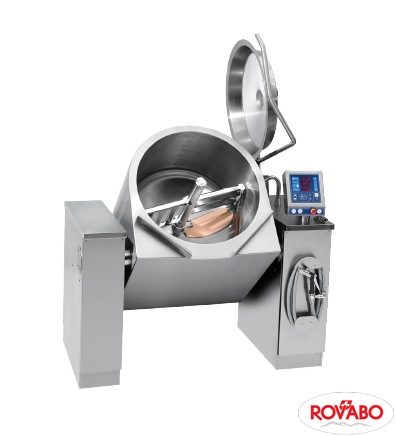

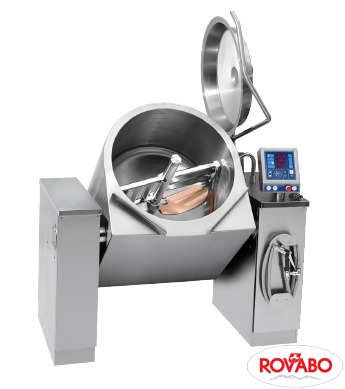

All sizes can be built together and combined with Multi, MultiMix and Opti. The mounting pillar can be placed either to the right or to the left of the kettle. Kettle bowl: manufactured in acid proofed steel. Full welded, insulated kettle body with a volume scale inside the kettle. Pillars manufactured of stainless steel. Heating method: Electrically heated integrated steam generator or external steam supply. Working pressure: 1,0 bar. Max. steam temperature: 120˚C. Adjustable, vertical control box. Small quantity of water in the steam generator. Heating elements at the front of the kettle. Base plate with seals inside the outer jacket of the kettle. Integrated isolator switch. Easy accessible on/off button helps to reduce standby consumption. Pressure gauge. Tilt height: 600 mm from floor to bottom of pouring lip. Unheated top. Hinged stainless steel lid with gas spring and ergonomic lid arm. Lid with inspection hatch and fitting cover. Safety device to prevent tilting with a closed lid. Electric tilt with adjustable TiltBack. Error codes for user errors and appliance faults. Maximum temperature on the outside of the kettle bowl after 3 hours cooking <40°C (except for construction-determined conductive heat in some edge zones). Working height: 900 mm. Stirrer. Integrated stirrer with no joints in the food area. Solid, lightweight stainless steel stirrer. Scrapers made from synthetic food approved and heat resistant materials. Slow acceleration/deceleration for improved safety. Fast stopping of stirrer when lid is opened. Stirrer is protected against overload. Noise level in use: under 55 dB. Control AutoTemp 56, control by the food temperature and with dynamic heating power steps. Electronic control of the food temperature. 9 dynamic heating power steps for gentle cooking. 7 dynamic stirring patterns with reversal and variable speeds. 15 programs with storage of 10 sets of data. 7 of the programs require the chilling function to be selected. Electronic water flow meter with drip-free spout. Clock. PowerMix. Electrically heated kettles have an automatic control of the water level in the steam generator (WaterLevelAutomatic). Access code can be selected. Two sets of arrow keys for fast, precise setting. Accessory for OptiMix: automatic chilling using water from the mains supply with water-saving function (for 60-300 l), drain valve/ butterfly valve (during cleaning rinse water can run out an open drain valve and a bigger drain in the floor should be considered), GN pouring support, temperature sensor for collection of temperature data with start/stop function when switching on/off the heat or chilling, SlowMix with adjustable speed, foot pedal for controlling SlowMix, tilting and water filling, rotatable lid, cleaning tool, wiping tool, sieve plate, pouring plate, measuring rod, spray gun, embedding frame, trolley, mounting plate.
