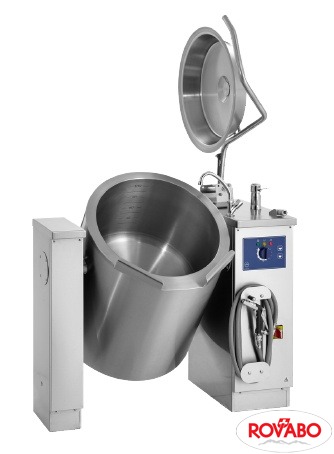

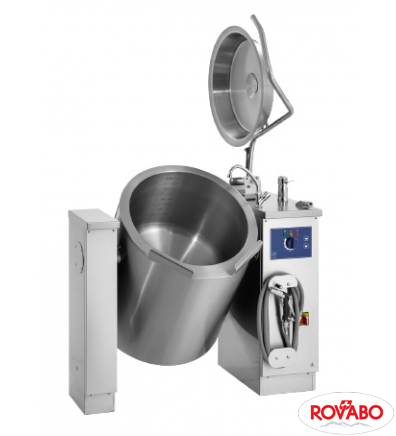

- Electric tilting kettle with AutoTemp 02e, 300 l
| Model | EASY300 |
| Power Type | Electrical |
| Power | 45 kW |
| Temperature | 0-120ºC |
| Capacity | 300 l |
| Dimensions | 1400x1075x2194 mm |
| Weight | 518 kg |
| Voltage | 400 V/3/50 Hz |
| Producer | Jøni A/S |
All sizes can be built together with Easy and EasyMix. The mounting pillar can be placed either to the right or to the left of the kettle. The bowl is of acid proofed steel. Full welded, insulated kettle body with a volume scale inside the kettle. Pillars manufactured of stainless steel. Heating method: Electrically. Working pressure: 1,0 bar. Max. steam temperature: 120˚C. Small quantity of water in the steam generator. Heating elements at the front of the kettle. Base plate with seals inside the outer jacket of the kettle. Integrated isolator switch. Pressure gauge. Unheated top. Hinged stainless steel lid on an ergonomic lid arm. Electric tilt. Maximum temperature on the outside of the kettle bowl after 3 hours cooking <40°C (*except for construction-determined conductive heat in zone edge zones). Working height: 900 mm. Control AutoTemp 02e. Electronic heat control with dial. Filling of water into the kettle via cold water tap. Automatically filling of water into the steam generator when the level is low. Indicator light for kettle in use. Indicator light to indicate excessive pressure in the kettle/overheating of the heating elements. Accessory for Easy: drain valves/ buttefly valves (*during cleaning rinse water can run out of an open drain valve and a bigger drain in the floor should be considered), GN pouring support, rotatable lid, manual chilling with water from the mains supply, sieve plate, pouring plate, cooking basket (40-200 l), measuring rod, spray gun, embedding frame, trolley, mounting plate.
