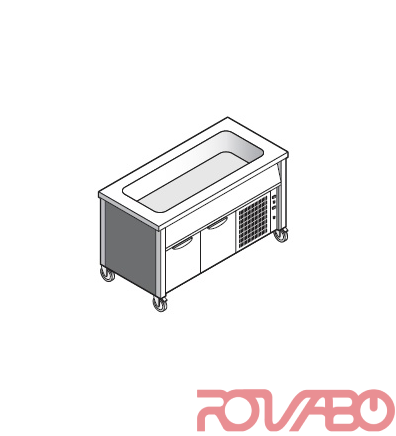

Static refrigerated tank on refrigerated cupboard with hinged doors, +4/+10ºС, 6 GN1/1
| Model | HCEVVR23 |
| Power Type | Electrical |
| Power | 0.6 kW |
| Temperature | +4/+10 ºС |
| Capacity | 6 GN 1/1 |
| Dimensions | 2300х700х900 mm |
| Weight | 168 kg |
| Voltage | 230 V/1/50 Hz |
In stainless steel 18/10. Top H = 50 mm made of stainless steel AISI 304, th. 12/10 with rounded edges. Welded and rounded tank for a better cleaning. Tank suitable for GN containers max. H = 200 mm. Contact cooling refrigeration through contact coils under the tank. Insulation by high density expanded polyurethane without C.F.C. and H.C.F.C. Refrigerated cabinet with hinged doors complete with GN 1/1 guides. With condensing unit or pre-set for remote refrigeration. Condensed water drain on bottom. Independently managed temperature and defrost of the tank and the cabinet by digital programmable thermostats. 3 hinged doors. 1350x590x420 mm cupboard (334 l), 1930x510x210 mm well. Automatic defrosting. R452A refrigerant gas.
