Refrigeration

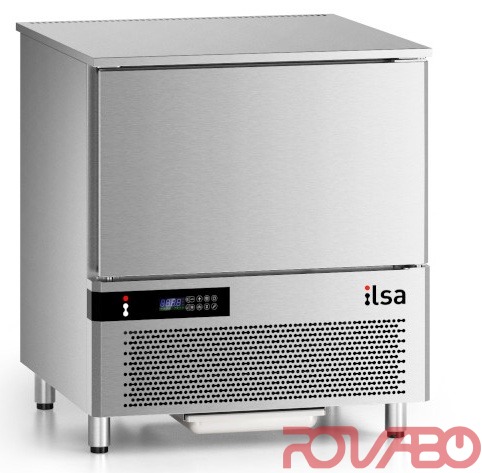

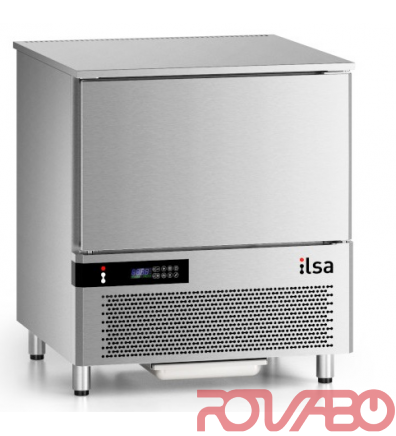

Blast Chiller 5xGN 1/1 / 600x400 mm, 18, 10 kg/cycle
Model AB05N
Power Type Electrical
Power 0.85 kw
Capacity 5xGN 1/1 (5x600x400 mm)
Dimensions 784х800/1545х900 mm
Weight 100 kg (neto)
Voltage 230V/1/50Hz
Stainless steel AISI 304 monocoque structure; scotch-brite external satin finish; 60 mm high density HFC free polyurethane foam insulation (40 kg/m3); stainless steel adjustable feet; cell with rounded internal edges for a perfect cleaning and hygiene; easy access to the evaporator to facilitate cleaning; easily removable wire grids for GN 1/1 or 60x40 containers; reversible spring return door with removable magnetic gasket; door switch to stop the fan when the door is open; frontal air circulation inside the technical compartment for a uniform distribution of the flows; 6 operating cycles. Manual air defrosting, manual evaporation of defrost water. R290 refrigerant. Blast chilling (+90/+3°C) – 18 kg. Shock freezing (+90/-18°C) – 10 kg. Pitch 70 mm.
