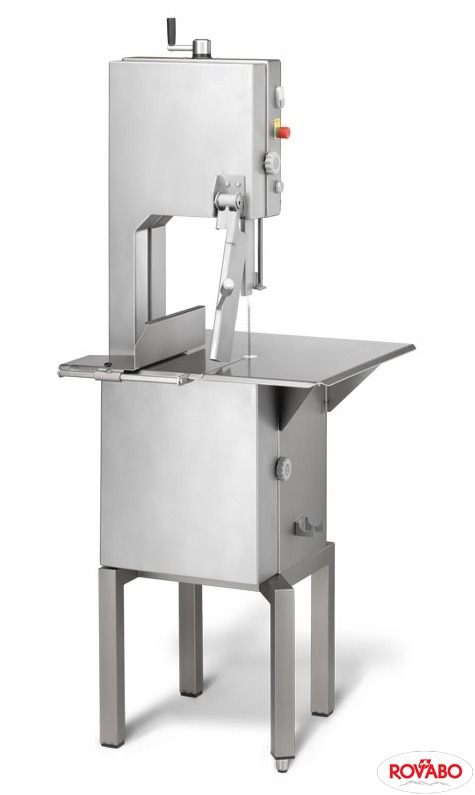

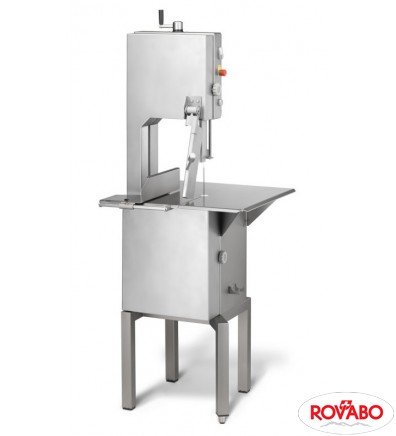

- Bone saw with fixed table 400V, 2430x16 mm blade
| Model | C/E243_V400 |
| Power Type | Electrical |
| Power | 1.1 kW |
| Dimensions | 735x715x1870 mm |
| Weight | 138 kg |
| Voltage | 400V/3/50 Hz |
| Producer | Minerva Omega group srl |
Professional use; with base. For butcher’s shop, super and hypermarkets, meat processing centres, fishing industry. Stainless steel frame, casing, safety door and worktop, pulleys. Left side column. Large working surface. Wide and deep cut. Smooth surfaces, no dirt traps. Easy cleaning and maintenance operations; removable s/s scrap pan,blade scraper and pulley scraper. Blade tightening device with friction brake. Continous service motor - Electrical mechanical brake. N.V.R. low tension (24V) safety device, with start, brake release,emergency stop button. Stop safety limit switch in door. Motor rpm - 900, wheel diameter - 315 mm, blade length - 2430x16 mm, cut deepness - 355 mm, cut height - 350 mm, cut width - 290 mm, size work plan - 715x695 mm, cutting speed - 15 m/sec. Accessories: sliding trolley assembled on fixing table; electromechanical board.
