Dishwashers, laundry

Pot washing machine, 6 GN 1/1 h65 mm or 3 GN 1/1 h200 mm and 3 GN 1/1 h65 mm per programme, 156/120 GN 1/1 per hour
Model 20717_GRANULE_GASTRO
Power Type Electrical
Power 16.9 kW
Temperature 65/85°C
Capacity 220 l (Ø700 x H 570 mm)
Dimensions 850x1002x2339/1693(±25) mm
Weight 304 kg
Water Outlet Ø32 mm
Voltage 400 V/3/50 Hz
Producer Nordisk Clean Solutions

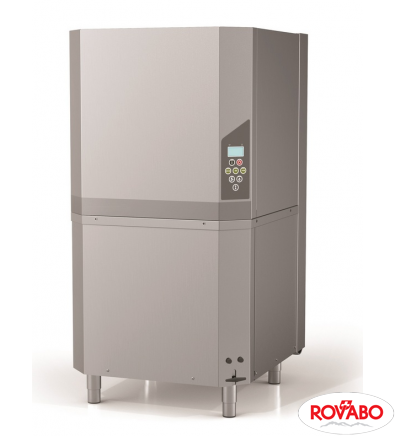

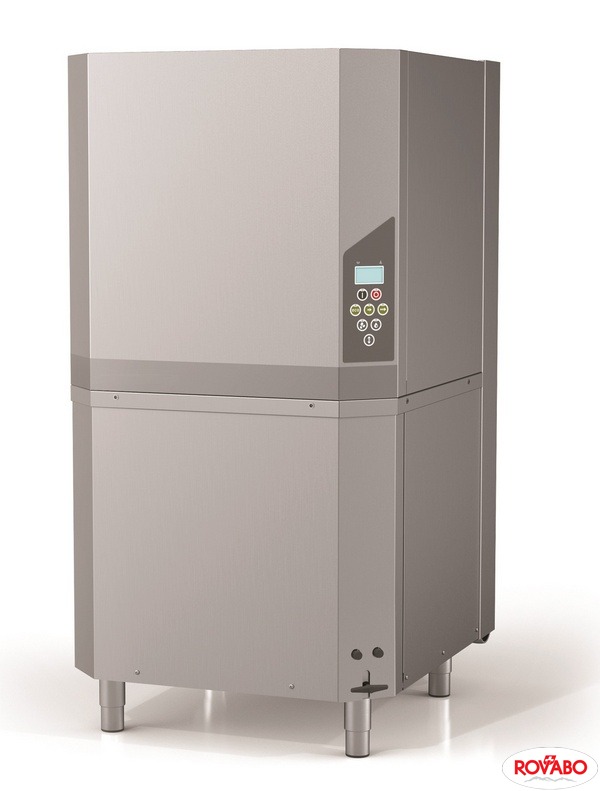

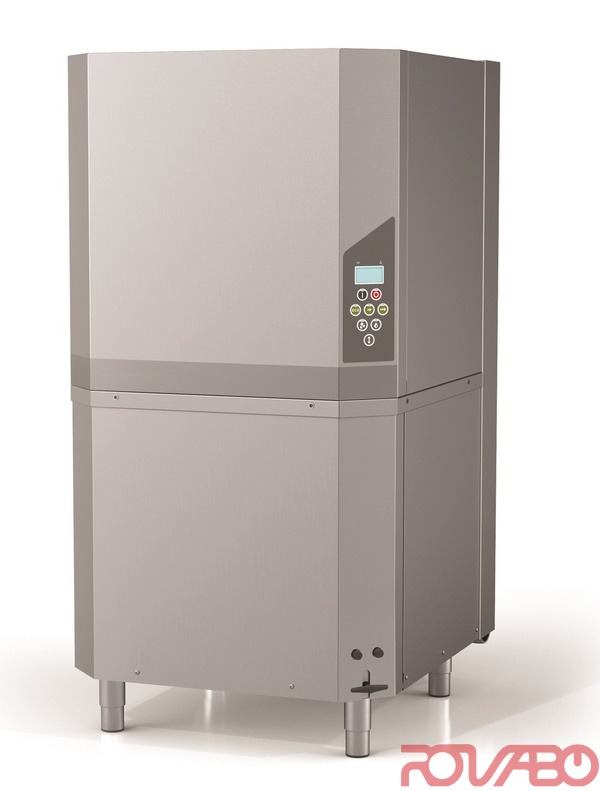

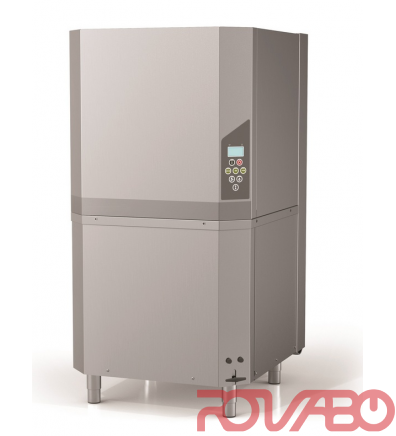

Granule Gastro is a pass-through model with automatic hood motion. Designed to be fitted with inlet and outlet tables to prevent cross-contamination, the rotating basket is optimized for the GN range and has a high hourly through-put for 65 mm deep GN1/1 pans. High capacity: 6 GN 1/1 or 1/2 per cycle and up to 156 GN1/1 or 1/2 per hour, wash with or without PowerGranules BIO®. Water-saving up to 1,600 l per day and up to 480,000 l per year. Time-saving Clean pots and pans in 2 minutes - pre-washing eliminated. Chemical-saving Saves up to 3.5 liters per day - up to 1,000 liters per year; high hourly capacity for 200 to 1,000 hot meals per day. Granule Gastro is supplied with a circular stainless steel wash basket for the Gastronorm range and some pots and pans. Ergonomic design and automatic hood: automatic hood motion eliminates the otherwise repetitive task of opening and closing the machine between washes, and the control panel is placed to be easy to reach both in open and closed mode. The machine's interior has been designed to create as little resistance as possible so that the basket will effortlessly slide from the table and into the machine with only a gentle push. 3 cycles, 2 modes: wash hygienically clean in minutes, using a minimum of natural resources! No pre-washing needed - just scrape and load, then choose cycle length and wash mode. HACCP wash log: the control system stores vital HACCP data for up to 200 wash cycles. The data log can be accessed via the control panel display or exported to a USB stick for further use or storage. Auto-reminders: the smart control system keeps track of the number of run wash cycles and reminds you when it's time to change wash water, granules, and to schedule your next preventive maintenance appointment. Technical details/ Standard Edition. Wash programs with granules: ECO: 2 min / Short: 3 min 10 sec/ Normal: 5 min 10 sec. Wash programs without granules: ECO: 2 min / Short: 2 min 40 sec / Normal: 4 min 40 sec. Hourly capacity max./normal (normal incl. handling): 156 / 120 GN1/1 or similar in other pots. Capacity per program: 6 GN1/1 65 mm depth or 3 GN1/1 up to 200 mm depth and 3 GN1/1 up to 65 mm depth or similar in other pots. Machine including USB port for HACCP Log, GD Memo™, type AB air gap according to EN 1717. Standard equipment: 26426 standard wash basket (GRANULE GASTRO® HORECA PACKAGE - wash basket with bottom grid), 21838 scraper, granule collector 8 l, 8 l PowerGranules® (in the machine); N.B. Tabling recommended, pass through machine.
